Paint, paste materials such as ink, pigment, cosmetic
Place of Origin:
Roller Working Length:
Material of Rollers:
chilled cast alloy iron
After-sales Service Provided:
Engineers available to service machinery overseas
80 Set/Sets per Month
Packaging & Delivery
Standard wooden case packing
Dimension of this machine is 1180*1120*980(L*W*H).
Weight of 800kg.
Shipped in 7 days after payment
S200 three roll mill is the unique product of our factory, mainly used for paste materials such as paint,printing ink,pigment.It is specially applied in grinding the materials with high viscosity to get fine product.
SPECIFICATIONS FOR S200 THREE ROLL MILL
Diameter of Roll
Working Length of Roll
Rotation Speed of Rolls
1) Simple structure in linear type ,easy in instllation and maintation.
2) One of the grinding machine which can reach finest grinding result;
3) Temperature display of the inlet and outlet water for option to ensure no effect on product quality from temperature change.
4) Adopt gear to adjust rollers to get more stability and endurance

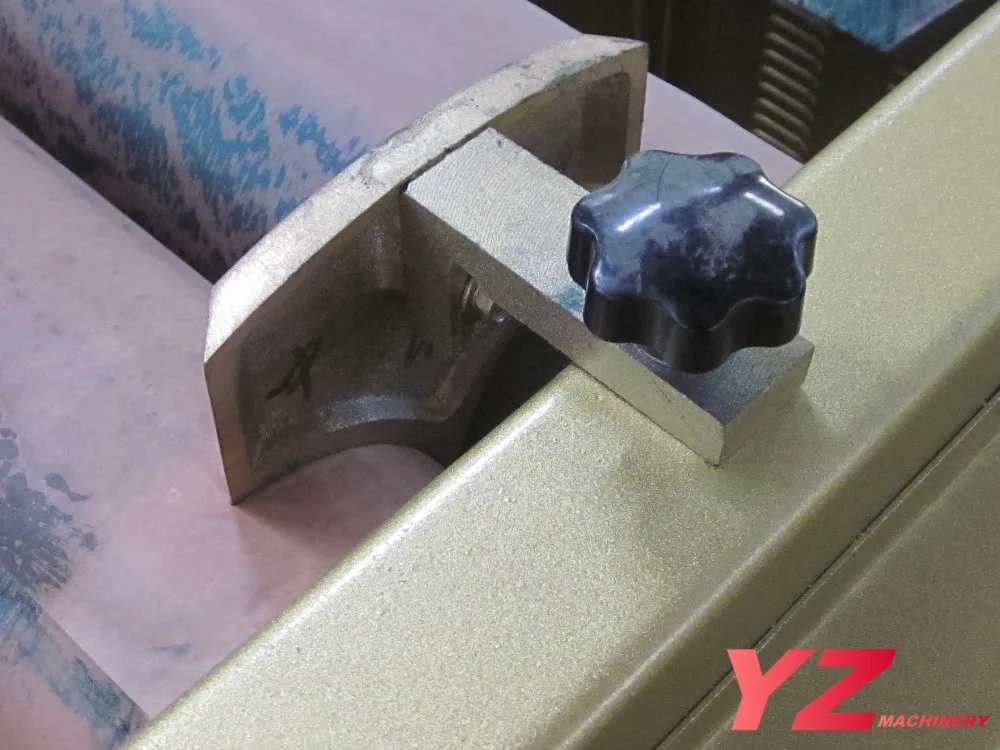

Name: Copper End Plate and End Plate Rack
The feeding device, composed of copper end plate and end plate rack, is mounted on the both sides between feed roll and center roll. The copper end plate close to the surfaces of feed roll and center roll guarantees no material flowing out.The end plate rack is bolted on the miller body in order to adjust the distance and dismount to clean. The copper end plate should be often adjusted so as closely to contact the surface of roll.

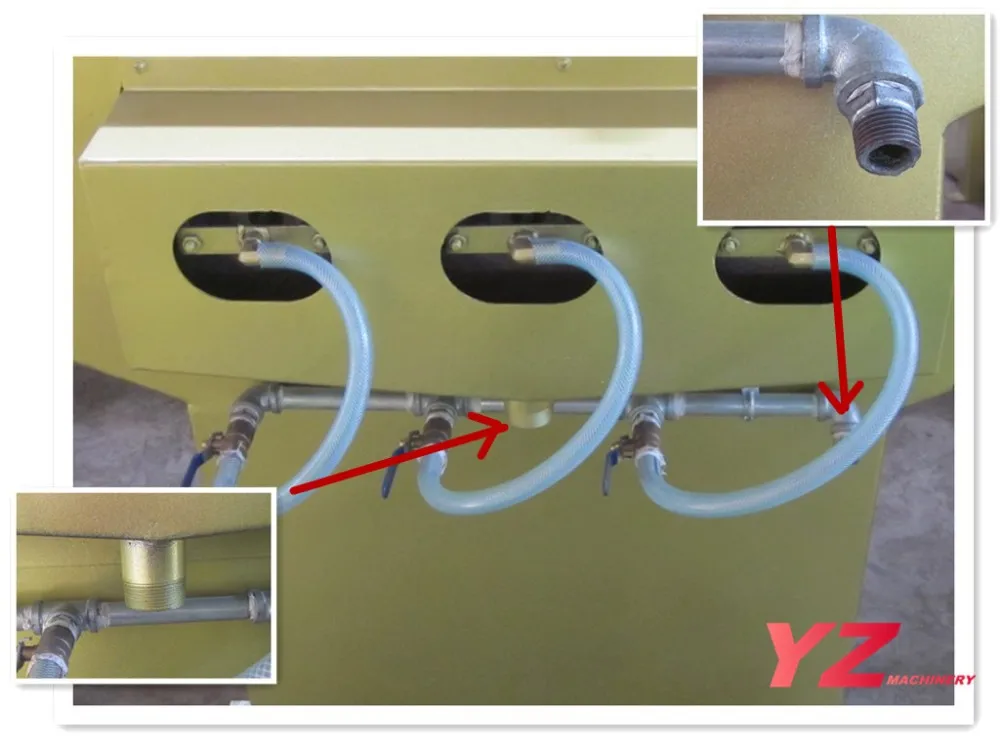

Name: inlet and outlet of the cooling water It's for cooling system with a hosepipe connected to the inlet and outlet on the machine.

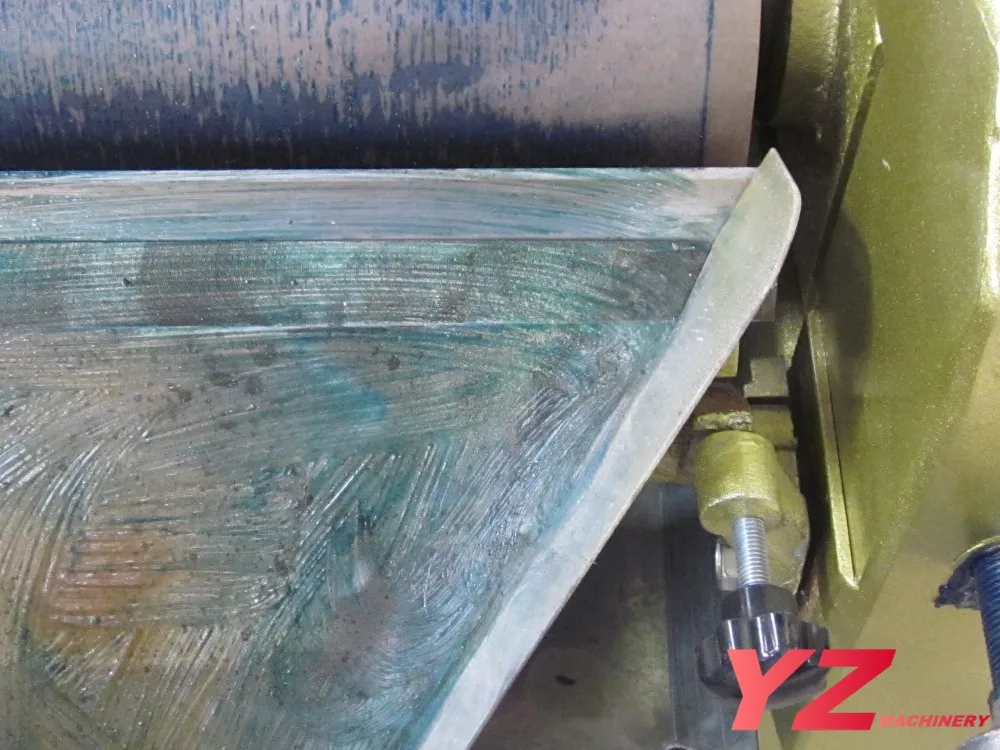

Name: The discharging apron
The discharging apron is mounted on the discharging apron rack of miller body. The blade knife is fixed on the discharging apron, and close to the surface of roll . The blade edge should be 5mm higher than the horizontal center line of roll in order to scrape the material adhered to the surface of roll.

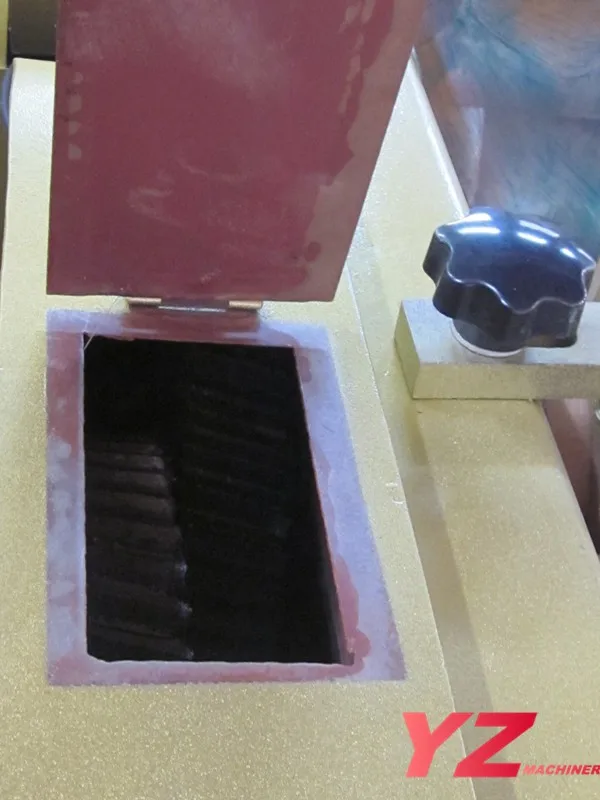

NAME: Lubricating oil filler opening
This is for filling the lubricating oil to the gears inside.The gearing surface between transmission gears on left side of roll should be lubricated every three or five days to avoid damaging the gear tooth.
Packing & Delivery
1200(L) * 1130 (W) *1000 (D)
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.We will pack it according to customers special request.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
