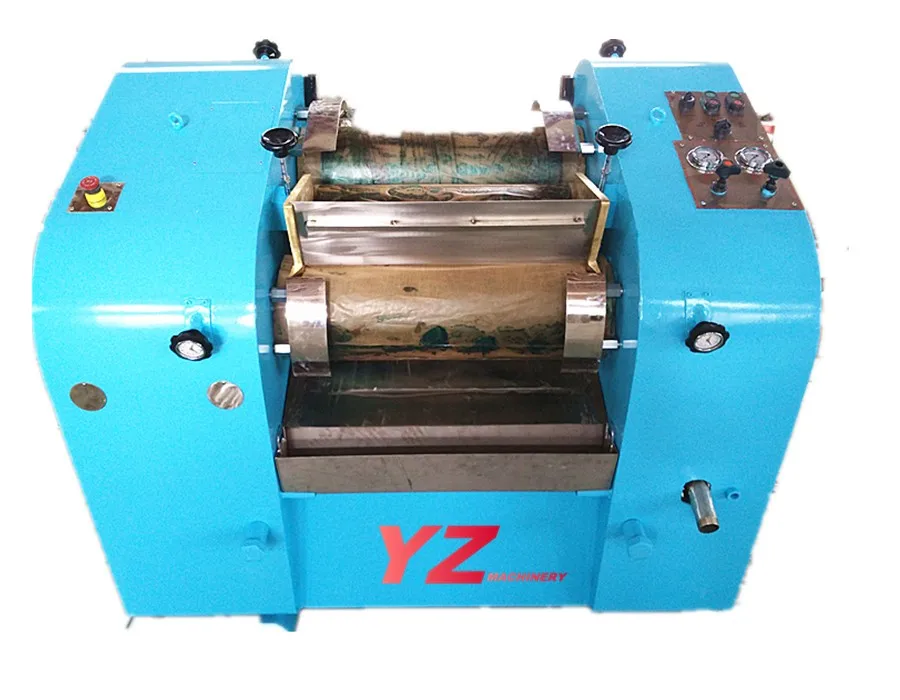

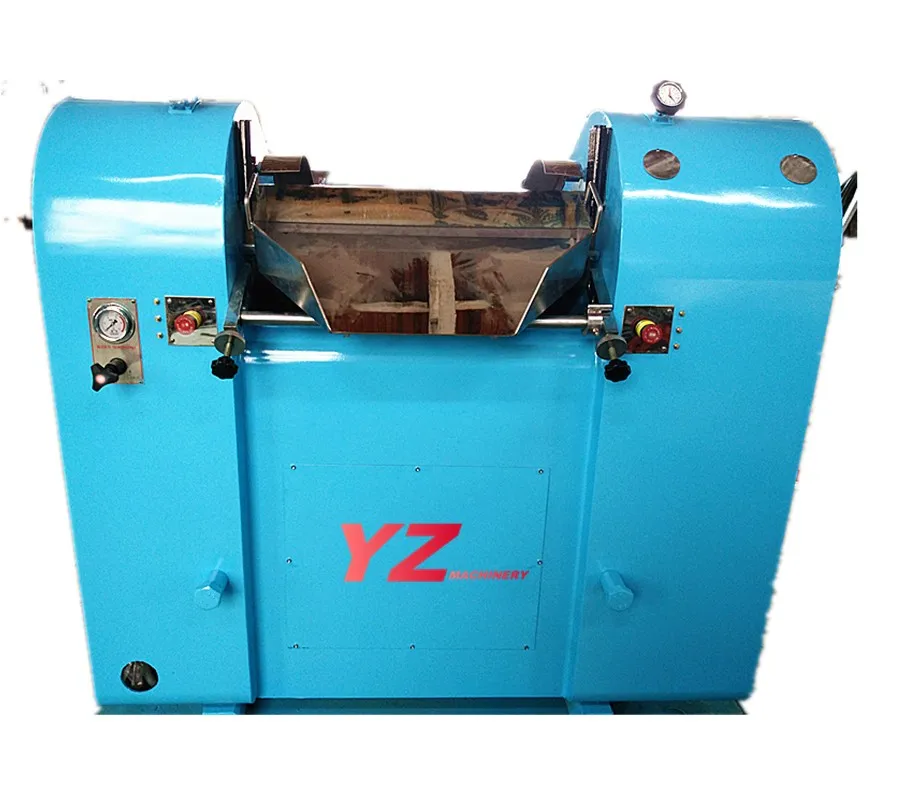

Hydraulic Three Roll Mill Grinder Machine

FOB Reference Price:Get Latest Price
$10,000.00 - $20,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
YSP260
Condition:
New
Type:
Grinder
Product Type:
Paint
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
YINGZHI
Voltage:
220V/380V customized
Dimension(L*W*H):
1645*1350*1750mm
Application:
printing ink, digital printing ink, solvent ink water-based ink
Adjusting mode:
Hydraulic
Alternative Name:
triple roll mill, three roll grinder
Color:
customized
Roller Material:
chilled cast alloy iron
Roller diameter:
260mm
Machine Style:
Oblique style
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
22KW
Weight:
2200KG
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard wooden case packing
Port
SHANGHAI
Product Description

Product Application

This hydraulic three roller mill is mainly used for various paste  materials such as paint, printing ink,  coating and pigment, solvent ink, digital printing ink, water-based ink, water-based paint, automobile Amending Paste, Nanometer material etc. This hydraulic three roller mill can achieve superfine grinding by mutual extrusion and friction of the three rollers.

SPECIFICATIONS FOR YSP260 HYDRAULIC THREE ROLL MILL
Diameter of Roll
260mm
Working length of roll
650mm


Running speed of rolls
slow roll(feeding roll)
57r/min
medium roll
150r/min
fast roll(discharging roll)
400r/min
Motor Speed
970r/min
Hydraulic system pressure
6.3Mpa
Dimension
1645*1350*1750mm
Weight
2200KG

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) We prepared an aviation quick-connection plugs , which is very convenient for users to connect electric wires.

3)  Highly integrated hydraulic components, resulting in efficient connection of pipes and reliable operation of the whole       system. All valves are installed into compact block, which makes maintenance easier.

4) Adopt frequency inverter to perform variable running speed.

5) When the roll's temperature is too high, the cooling system will start automatically.


Detailed Images

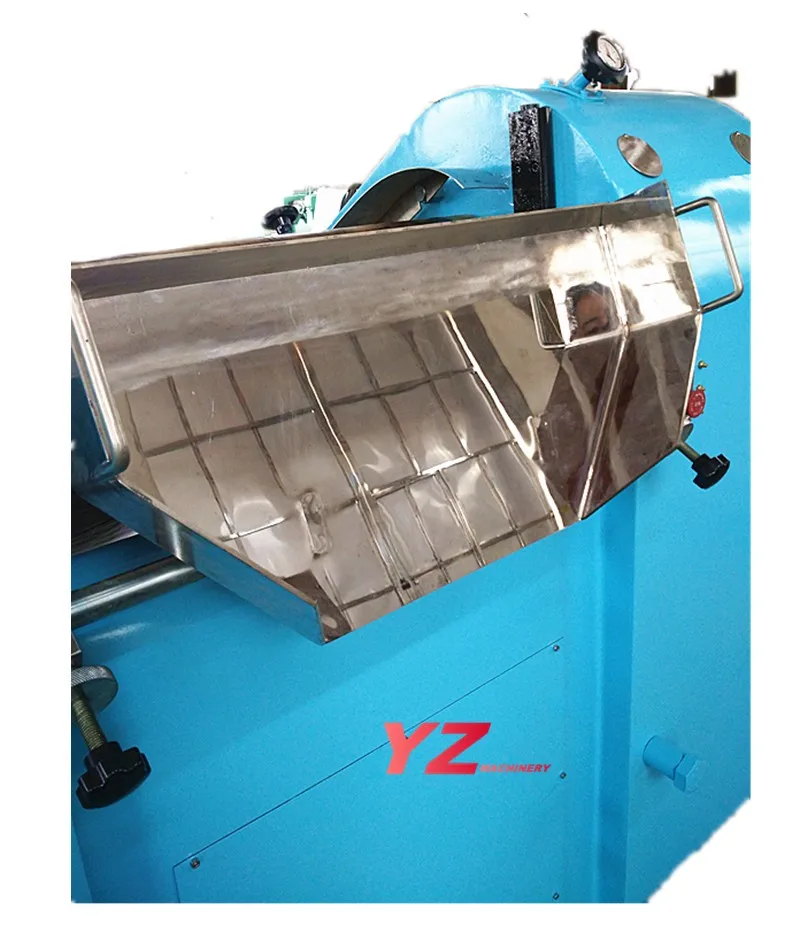

The discharging plate for discharging is mounted on the discharging plate bracket of miller body. The blade is fixed on the discharging plate, closed to the surface of roll by means of the adjusting screw.

The contact position of blade edge is 5mm higher than the center of roll in order to scrape the material adhered to the surface of roll.

Machine Parts

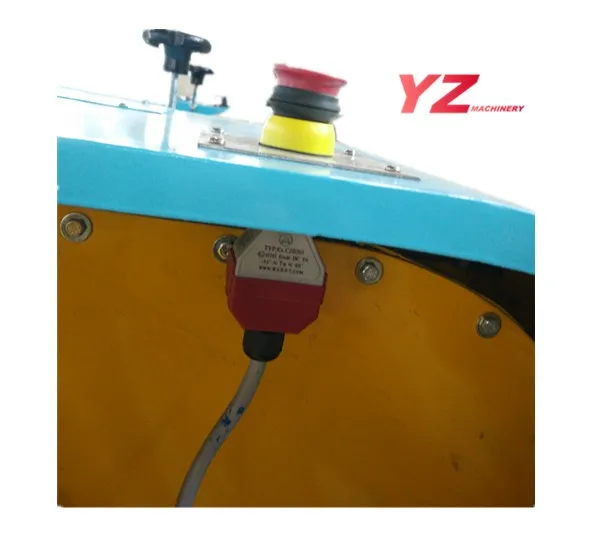

Name: EX-PROOF  Switch


Main Features

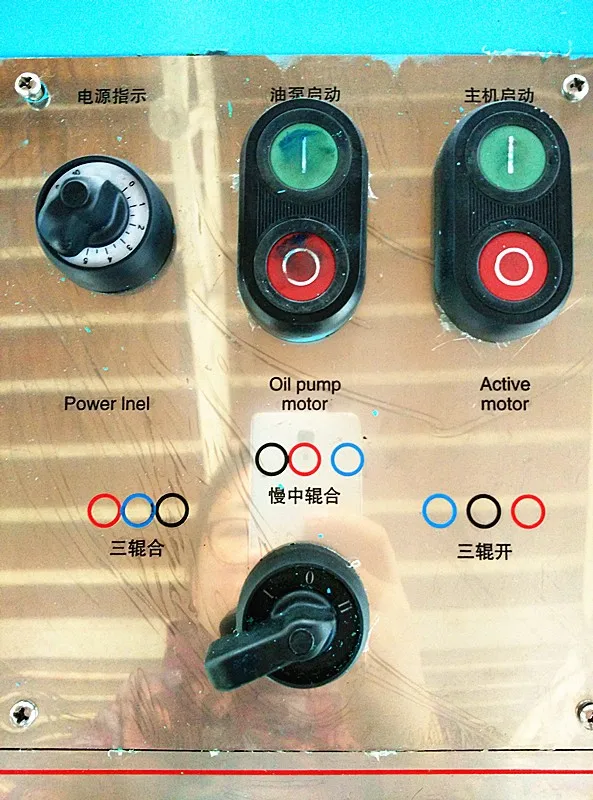

Name: control panel

Users can control three rolls working status by the machine's control panel, which is installed on machine.

Machine Parts

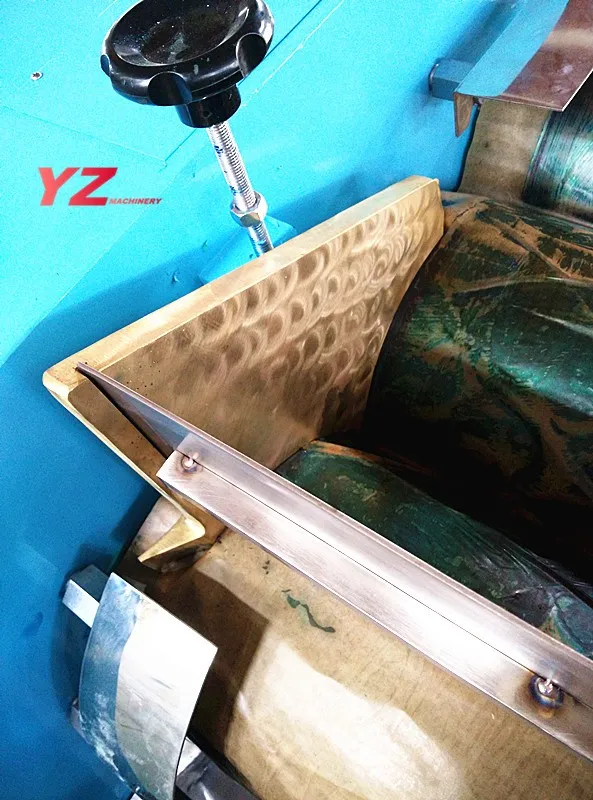

Name: Feeding device

The feeding device, composed of copper blade and bladebracket, is mounted on the both sides between slow roll and medium roll.

Main Features

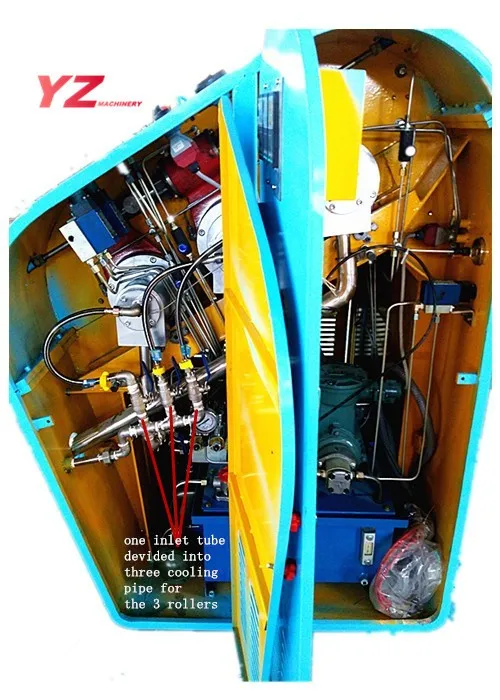

Name: cooling system

There is one general tube which fixed one machine, then this general tube is  devided into three independent cooling tubes which connect to each of three rolls.

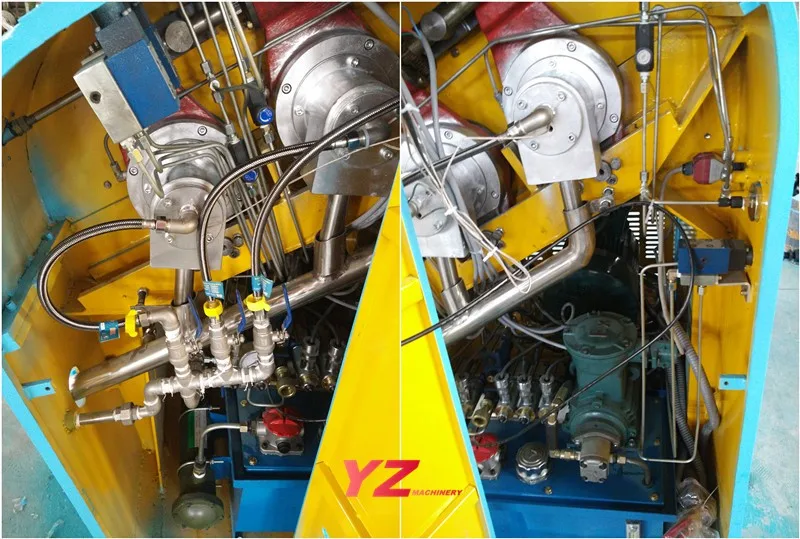

Hydraulic Power Unit.

.

Hydraulic Power Unit Close Shot.

.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1650(L) * 1360 (W) * 1760 (D)
Weight
200KGT



Packaging Details

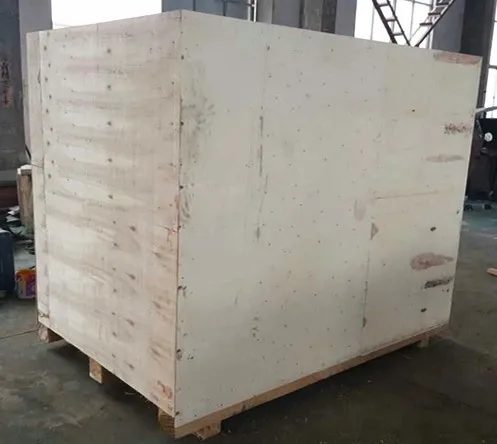

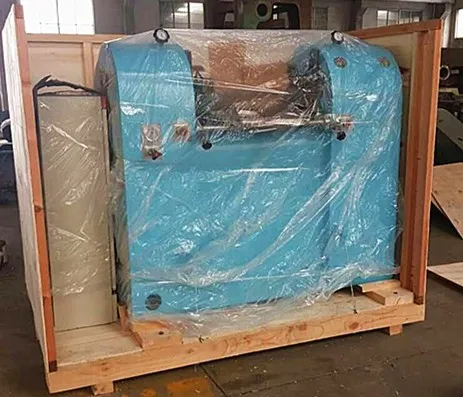

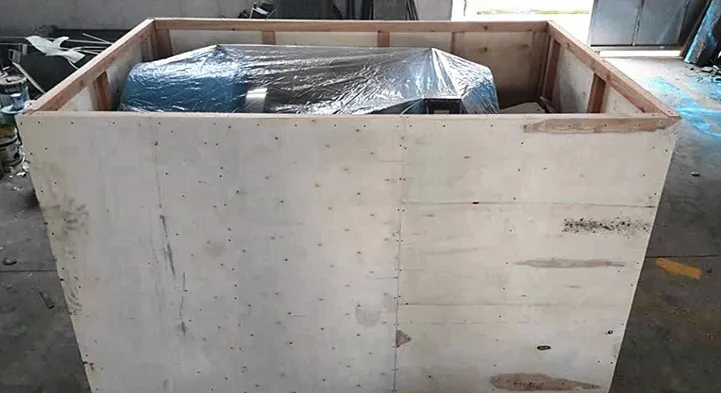

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.We will pack it according to customers special request.
