SG series Grinding Machine Three Roll Mill Rolling Mill

FOB Reference Price:Get Latest Price
$1,500.00 - $1,850.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
SG6''
Condition:
New
Type:
Grinder
Product Type:
Paint
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
YINGZHI
Voltage:
220V/380V customized
Dimension(L*W*H):
980*750*915mm
Application:
Soap, shampoo, ink, pigment
Color:
customized
Alternative name:
triple roll mill, three roll grinder
Motor type:
frequency conversion motor/normal motor
Weight:
500kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Power(W):
2.2kw
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard wooden case packing
Port
SHANGHAI
Lead Time :
Shipped in 7 days after payment
Product Description

Product Application

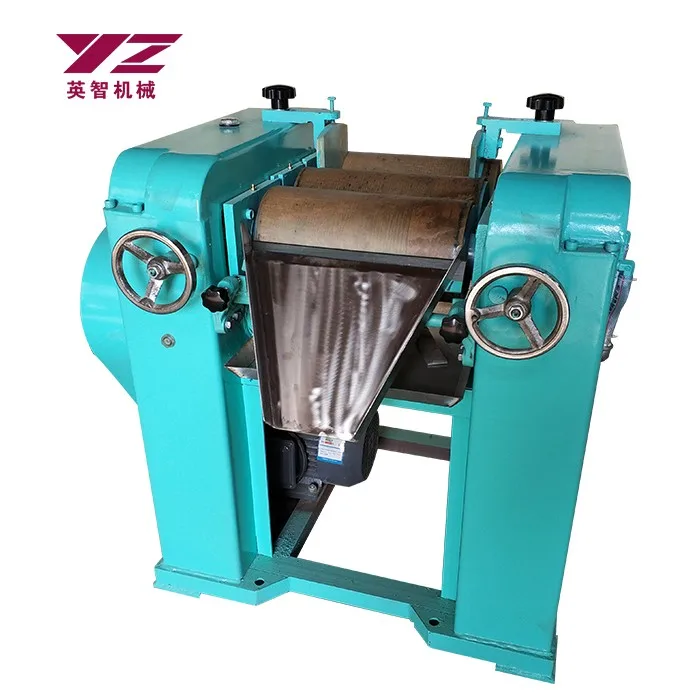

SG series three roll mill is welded by high quality steel plate, adopts oil-immersed type transmission gear. The handwheel adopts the gear drive.It features in beautiful appearance,convenient to operate,long life and so on.Particularly it is suitable for grinding the product that has high dispersitivity,viscosity and fineness.

SPECIFICATIONS FOR SG6'' THREE ROLL MILL
Diameter of Roll
150mm
Working length of roll
300mm

Running speed of rolls
slow roll(feeding roll)
34rpm
medium roll
78rpm
fast roll(discharging roll)
181rpm
Motor Power
2.2KW
Overall Size
980*750*915mm
Weight
500KG

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

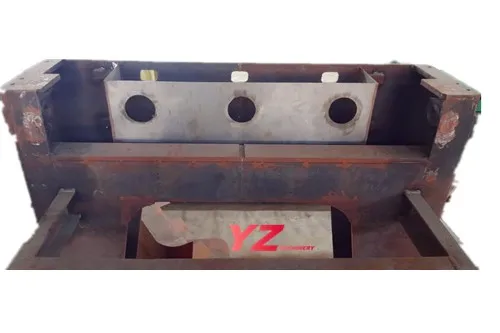

2) The whole machine is welded by the high quality steel plate.

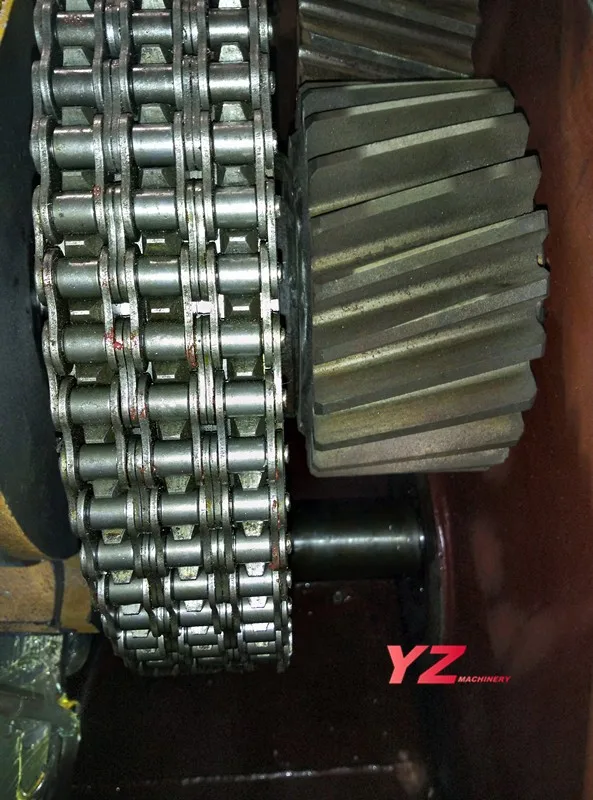

3) It adopts chain wheel and chain to transmit and the oil-immersed gears.

4) Low noise, beaytiful outlook, easy operation.

5) The temperature of rolls show on the thermometer.

6) This machine can be equipped with frequency converter to control the speed.

Detailed Images

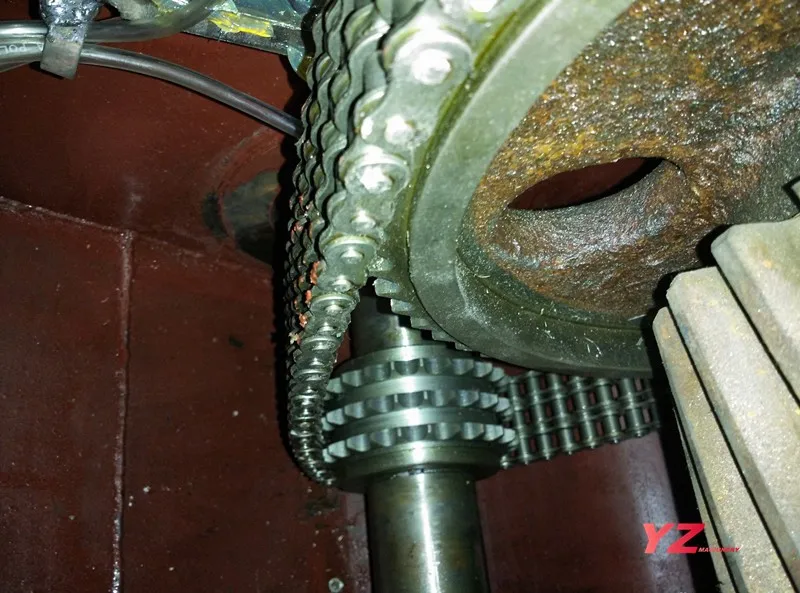

It adopts the sprocket wheel and chain to transmit the handwheel, which makes operation easier.






Machine Parts

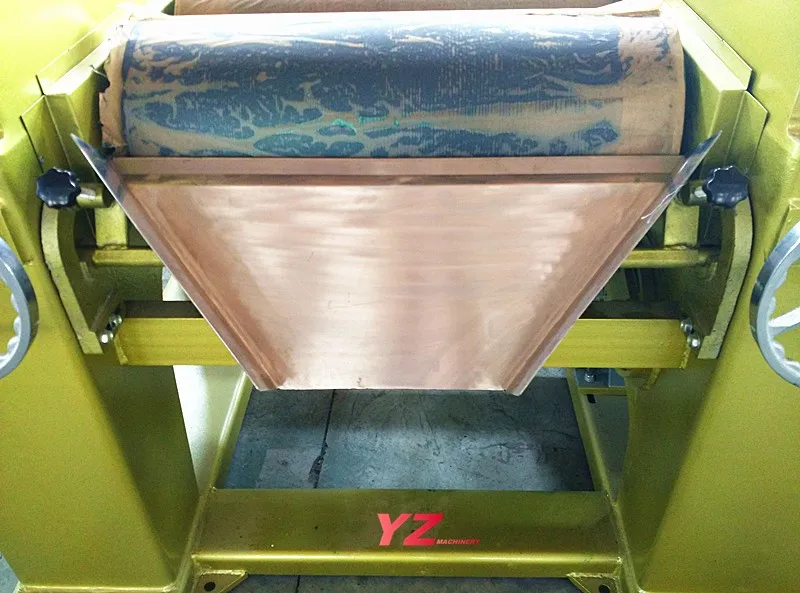

Name: Discharging apron made of 304# stainless steel


The discharging plate for discharging is mounted on the discharging plate bracket of miller body. The blade is fixed on the discharging plate, closed to the surface of roll by means of the adjusting screw.

Main Features

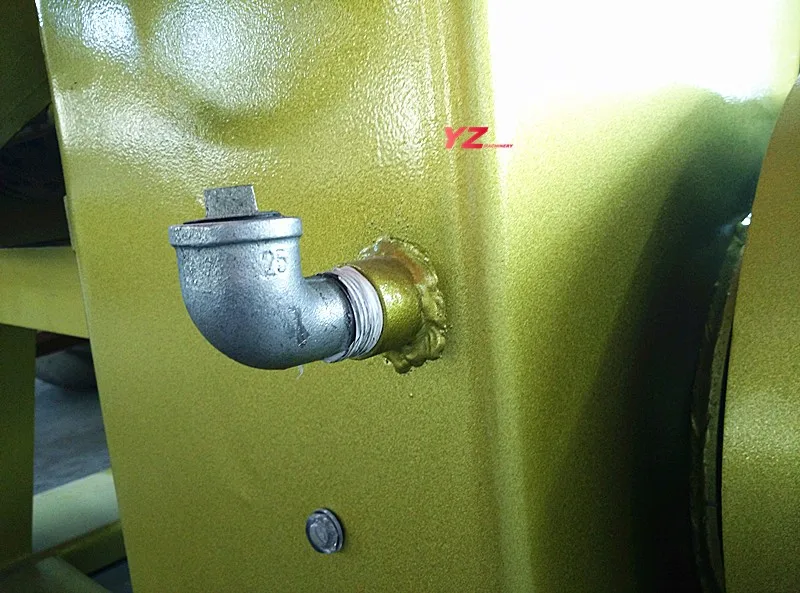

Name:gear oil filler opening

This is for filling the lubricating oil to the gears inside.

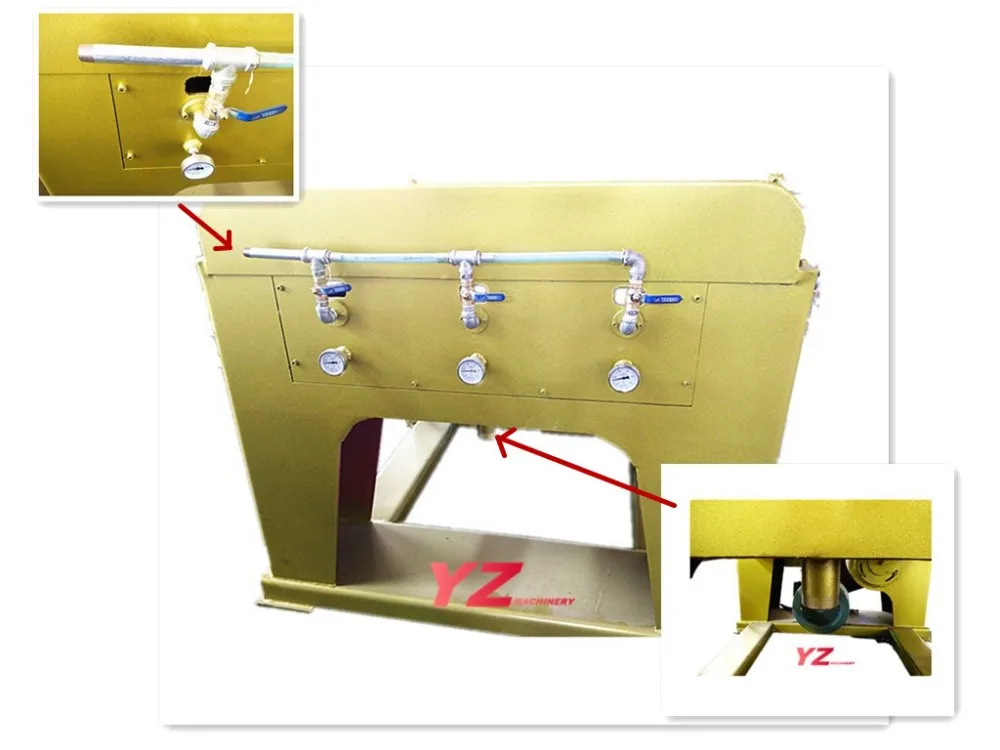

Cooling System.

The inlet and outlet of the cooling water. Different from other types of machine, the water tank is inside the right side of machine .

Water tank inside the machine.


Main Features

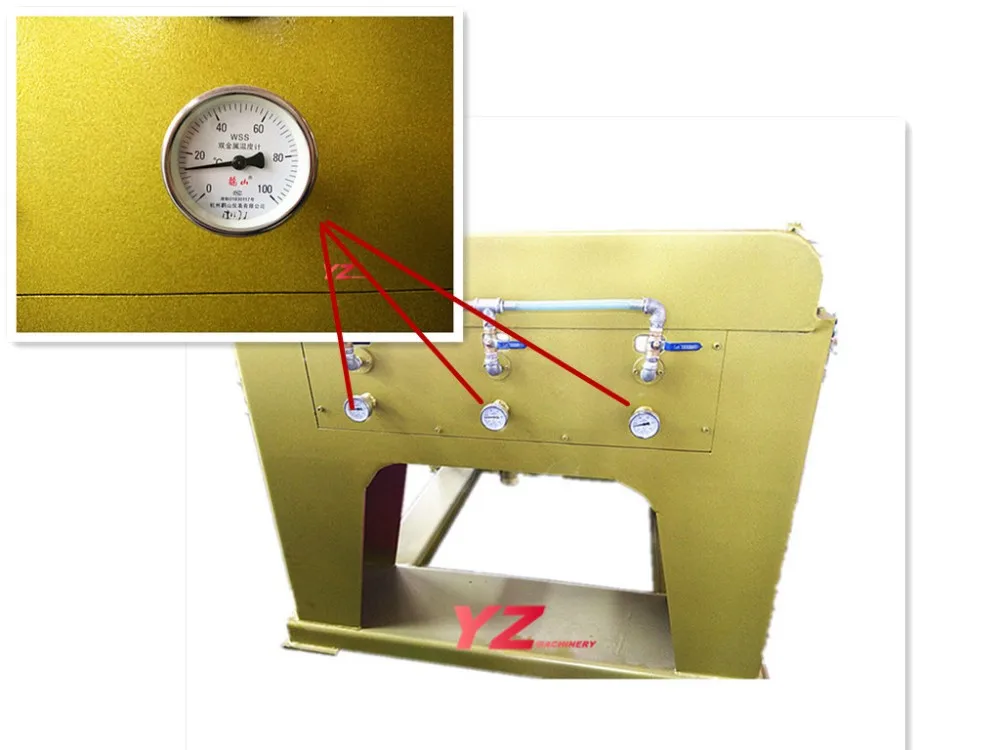

Name: thermometer of three rollers


The thermometers are for monitoring the temperature of three rollers.

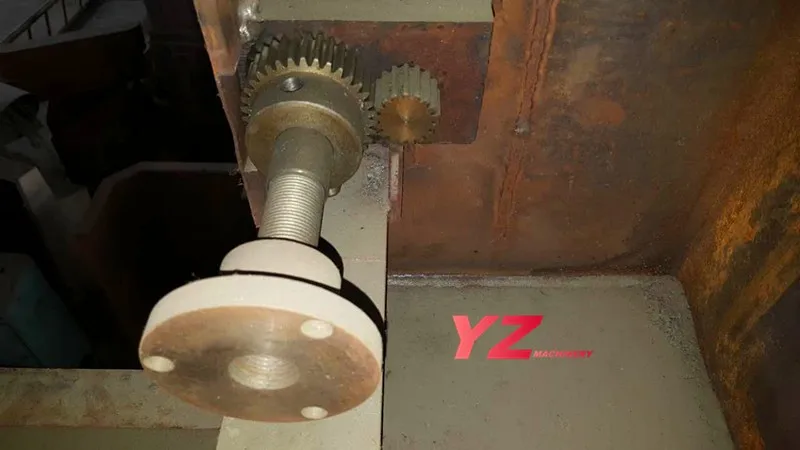

Gear Shaft for Handwheel

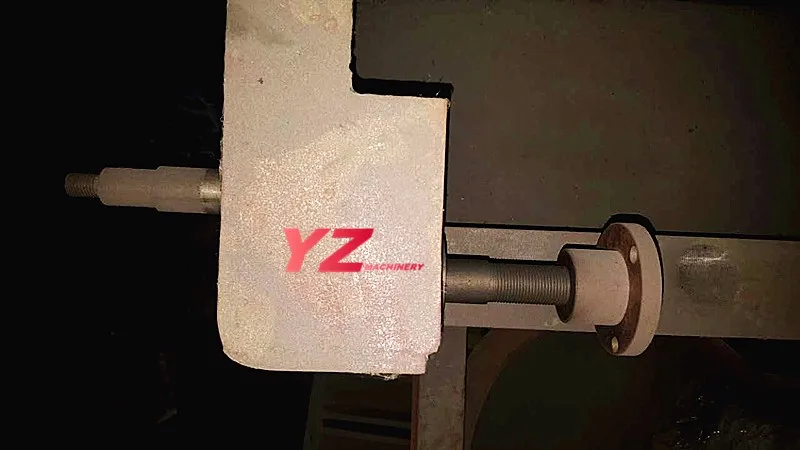

We operate handwheel to adjust the distance between the rollers.While we adopt the gear shaft, the handwheel becomes much easier for operation .



Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1720(L) * 1420(W) * 1260 (D)
Weight
200KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.We will pack it according to customers special request.
