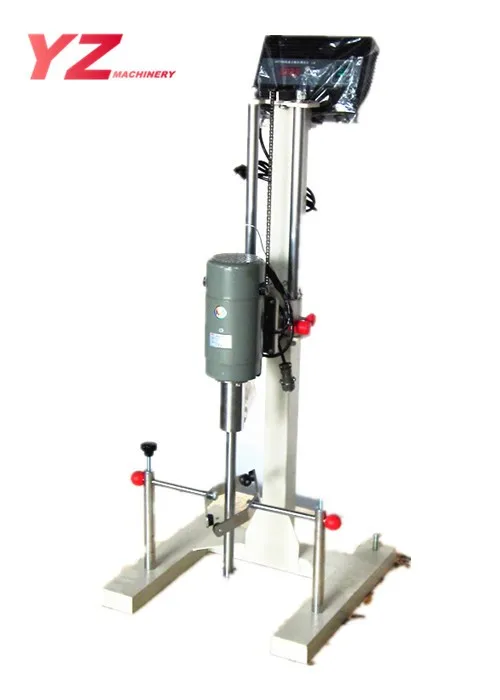

High Speed Dispersion Machine for paint disperser

FOB Reference Price:Get Latest Price
$600.00 - $750.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
SF1.1
Max. Loading Capacity:
5L
Condition:
New
Mixer Type:
Agitator
Product Type:
Paint
Application:
Liquid, viscous fluid such as paint ,ink,pigment
Additional Capabilities:
mixing
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
YINGZHI
Voltage:
220V/380V customized
Dimension(L*W*H):
500*480*1350mm
Weight:
60kg
Dispersion Plate Diameter:
80-120mm
color:
customized
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Power(W):
1.1kw
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Wood Carton
Port
SHANGHAI
Lead Time :
Shipped in 7 days after payment
Product Description

Product Application

This dispersion machine is widely used in lab of industry departments such as paint, coating, ink, pigment and so on. The machine is simple in structure and easy to operate.

                                                                        SPECIFICATIONS FOR SF1.1 DISPERSER
Motor Power
1.1KW
Capacity
5L
Diameter of Dispersion Disc
80/120mm
Lifting Height
350mm
Rotation Speed
0-8000rpm
Weight
60KG
Overall Size
500*480*1350mm

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2)High and stable rotation speed
3)Explosion-proof options
4)Stepless speed regulation and easy operation
5)Solid base and selected motor makes less noise during dispersing process

Detailed Images

Machine Parts

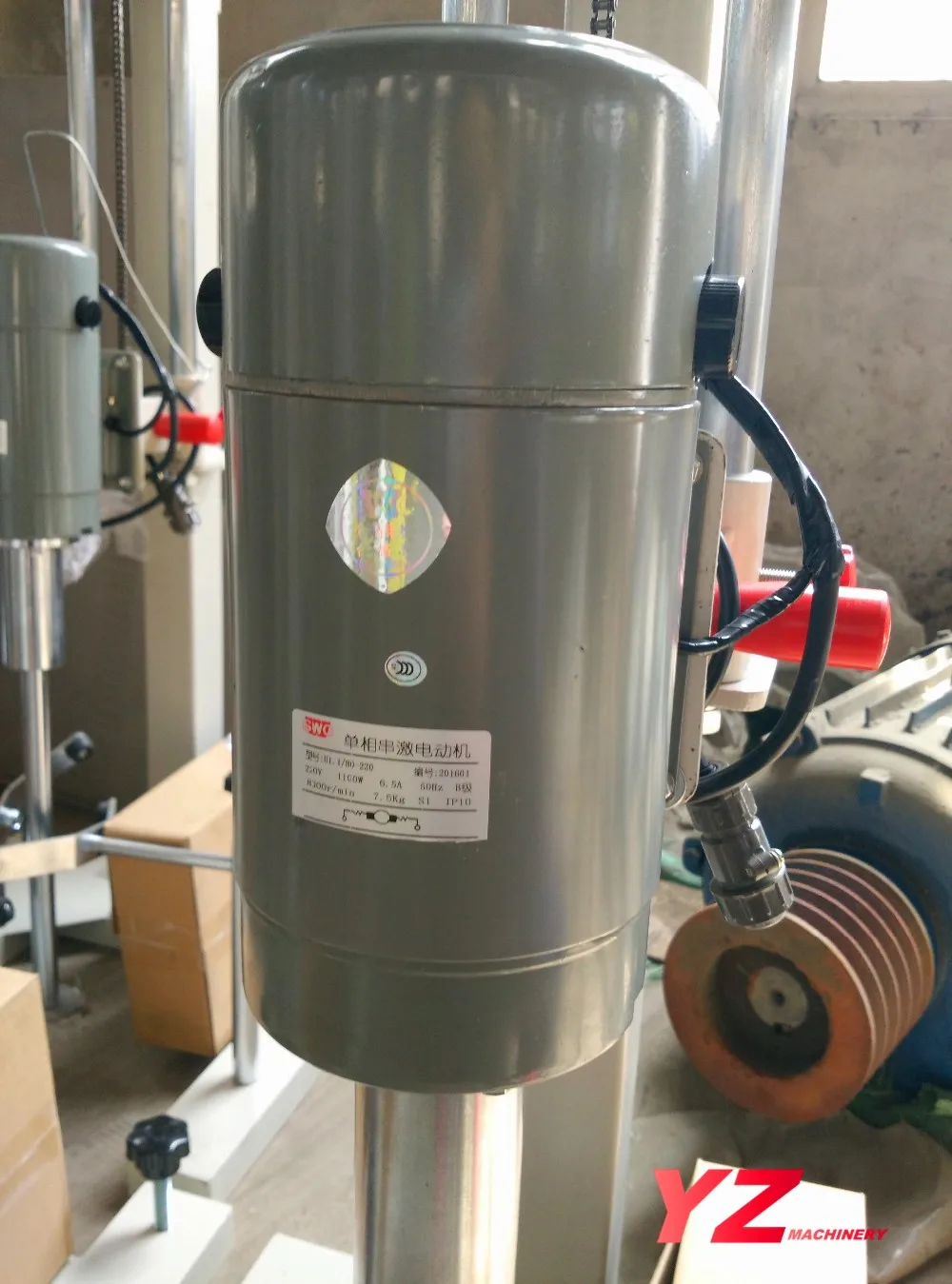

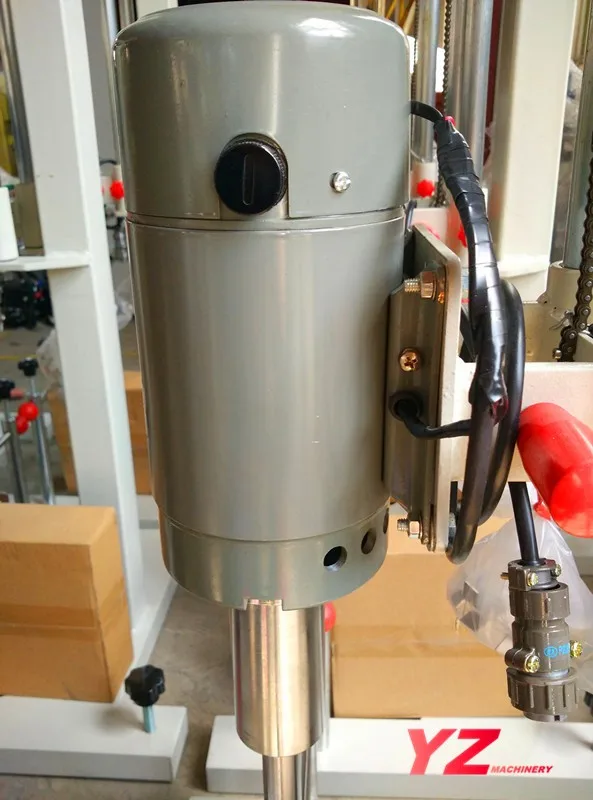

Name: Motor


The motor is mounted on the machine body by screw.

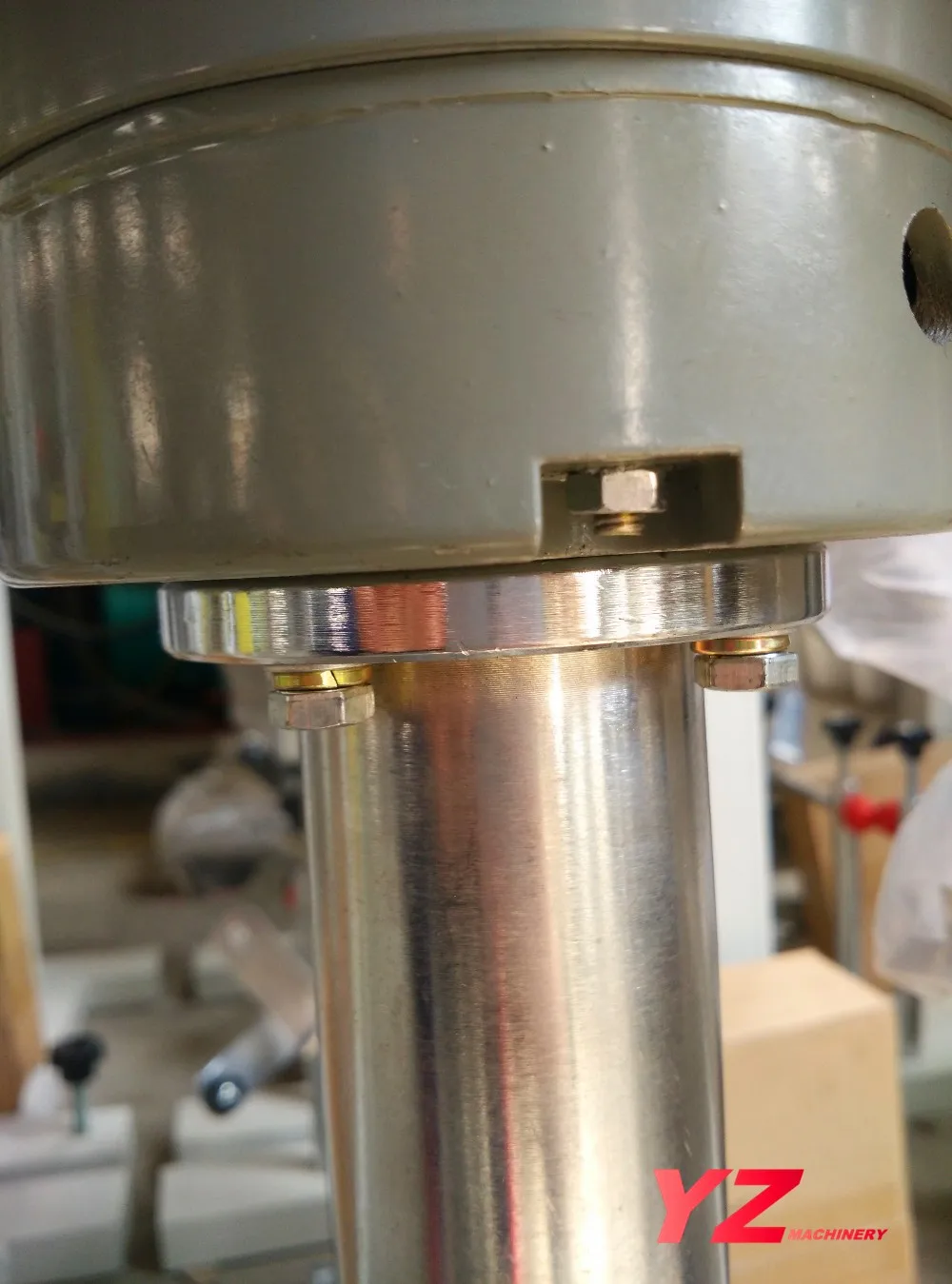

The motor and the shaft is connected by screw, too.

Main Features

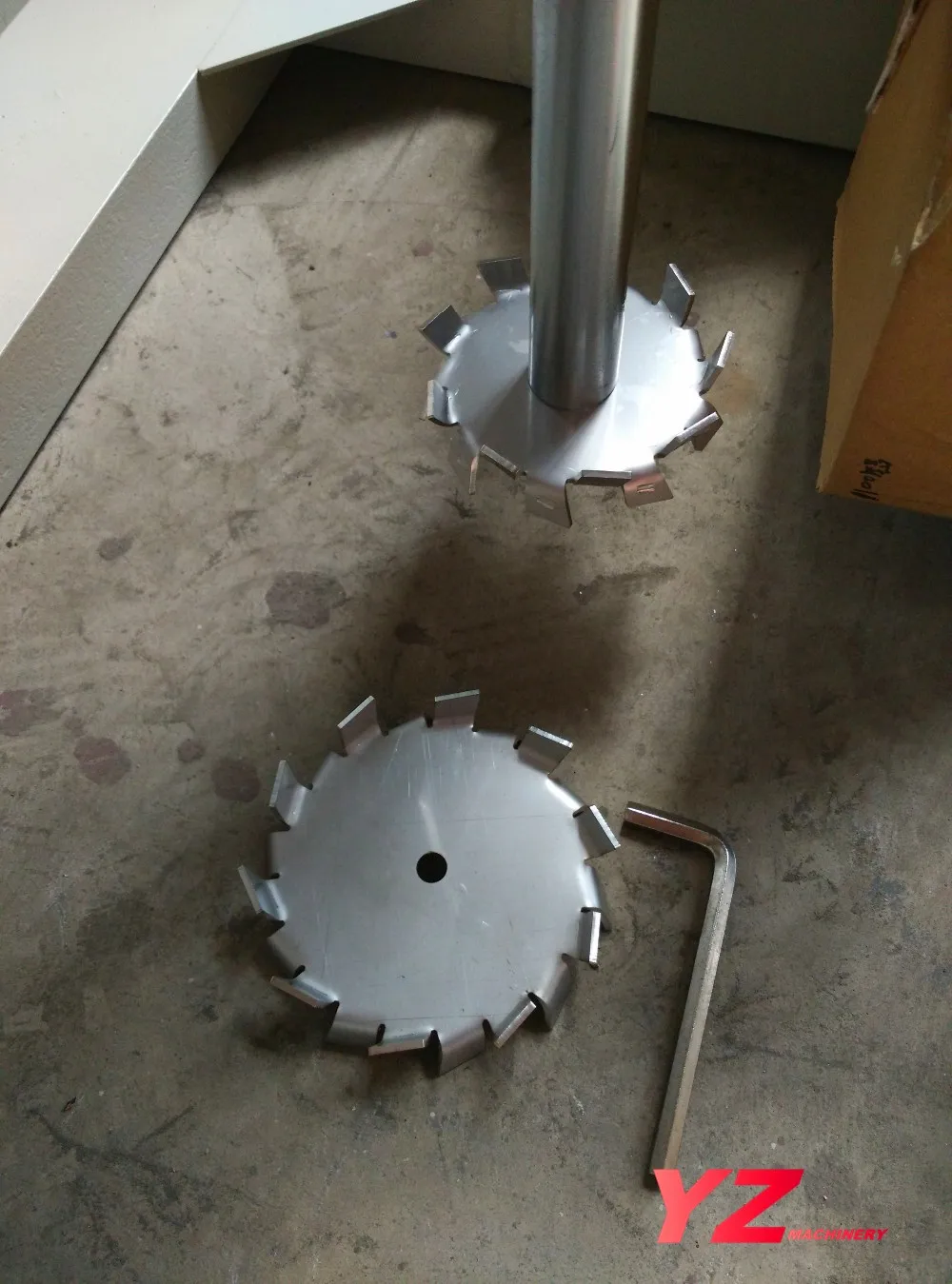

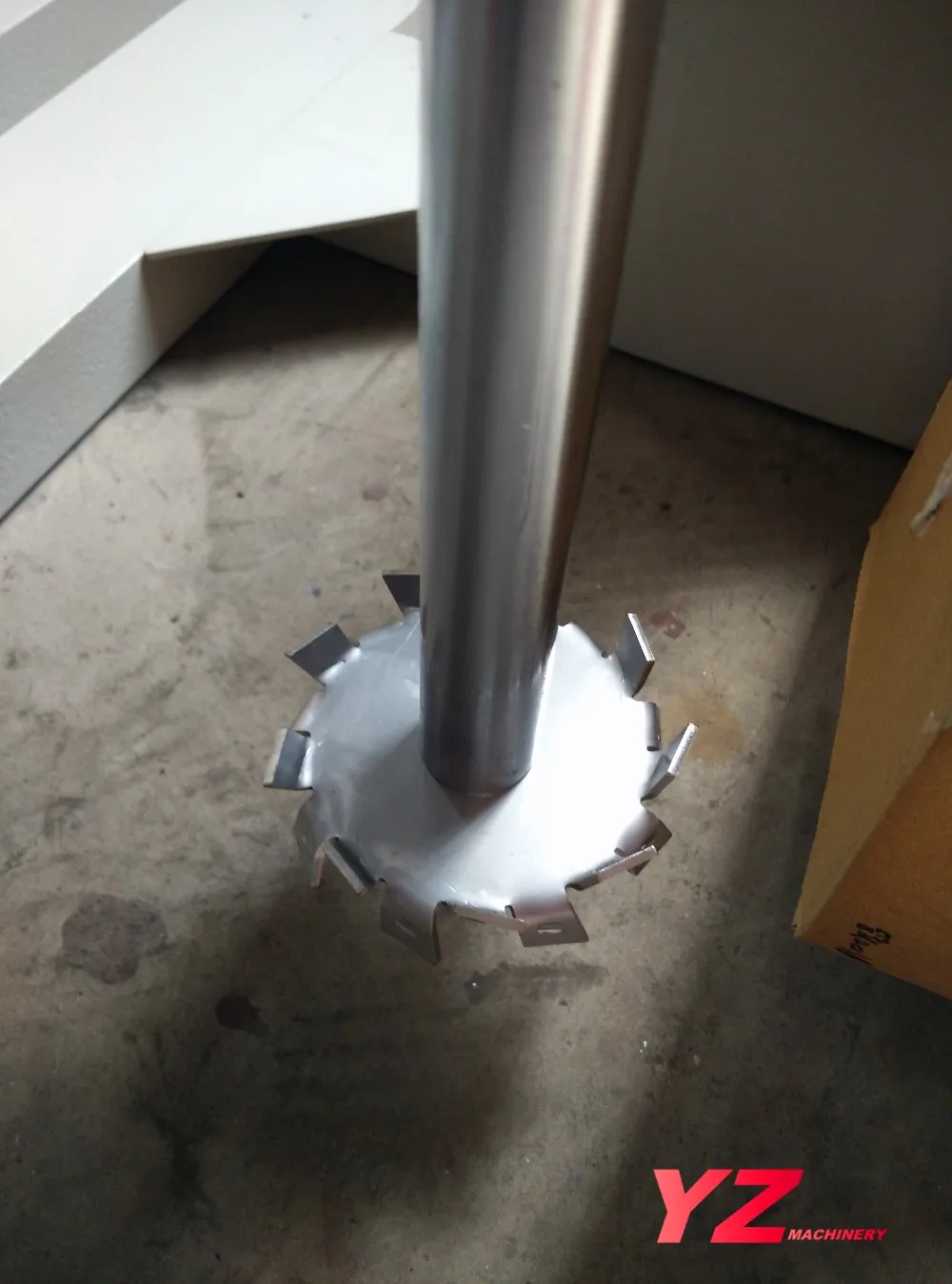

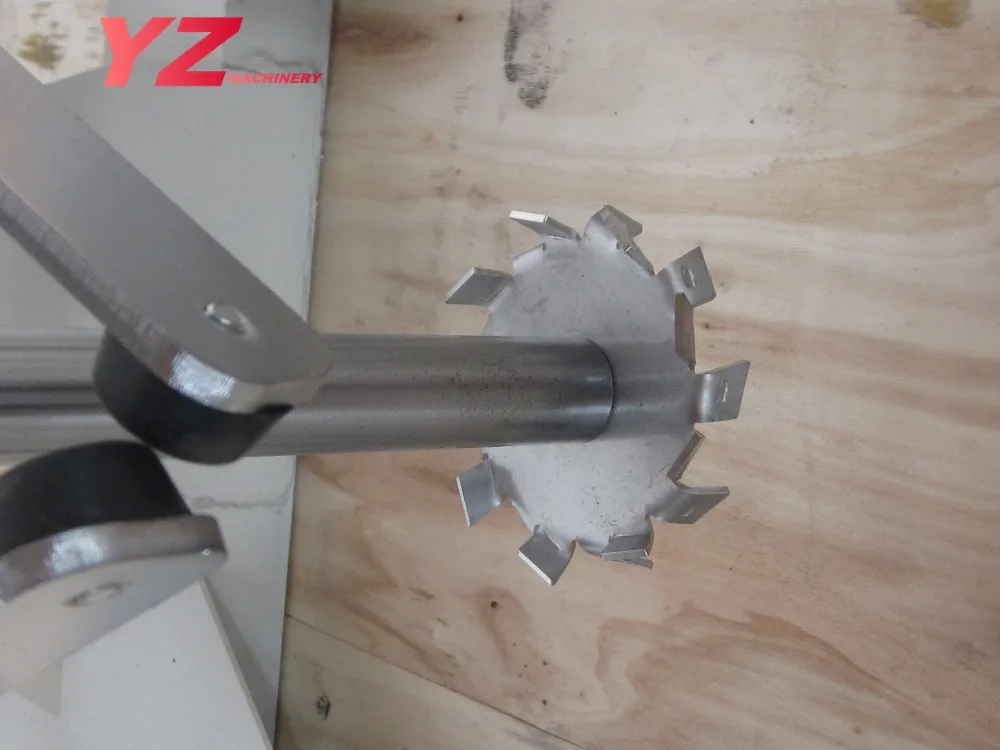

Name:  dispersion discs


We offer two discs of diameter 80mm and 120mm.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
510 (L) * 490 (W) *1360 (D)
Weight
15kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.We will pack it according to customers special request.
