Advanced three roll mill with speed reducer

FOB Reference Price:Get Latest Price
  • >=1 Sets
    $9,800.00
Report Suspicious Activity
Overview
Quick Details
Model Number:
QS315
Condition:
New
Type:
Grinder
Product Type:
Soap
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
YINGZHI
Voltage:
220V/380V customized
Dimension(L*W*H):
2500*1550*1180mm
Application:
silicone rubber, Offset ink, UV ink, Electronics paste
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
15kw
Weight:
3000KG
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
water-proof plastic cover and standard wooden case
Port
SHANGHAI
Lead Time :
Shipped in 30 days after payment
Product Description

Product Application

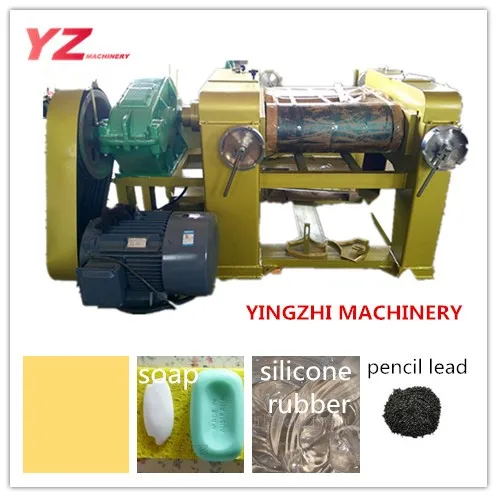

The machine with speed reducer is mainly used for the material with low liquidity such as silicone rubber, soap, pencil lead, etc.It is neither suitable for grinding the material containing acid, alkali composition nor the one would corrode rolls. If you need to grind the material with acid,alkali, we advise you to choose the roll mill with granite and ceremic rollers.

It is equipped with three rollers which are in horizontal level. With the roll extruding and milling in different speed, the material is ground normally for two times, and hard or high viscosity material for more times, then obtain high quality finished products of 3-18um(testing with fineness scraper).
SPECIFICATIONS FOR QS315 THREE ROLL MILL
Diameter of Roller
315mm
Working Length of Roll
750mm
Rotation Speed of Discharging Roll
100rpm
Power
15kw
Reducer Model
JZQ500
Overall Size
2500*1550*1180mm
Weight
3000kg

Main Features


1) Simple structure in linear type ,easy in instllation and maintation.
2) One of the grinding machine which can reach finest grinding result;
3) Temperature display of the inlet and outlet water for option to ensure no effect on product quality from temperature change.
4) Adopt gears to adjust rollers to get more stability and endurance.

5) Adopt speed reducer device to control the rotation speed the three rolls to grind the material with really high viscosity.

Detailed Images

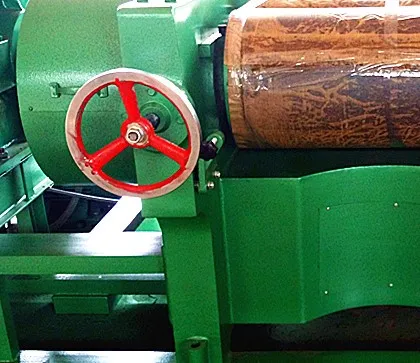

                                PICTURE  1

Compared with normal handling wheel(PICTURE 2) on the machine, this QS315 THREE ROLL MILL adopts an advanced handling wheel( PICTURE 1), whose endurance is much  more stronger than the normal one, because this machine is designed to grind really high viscosity material.

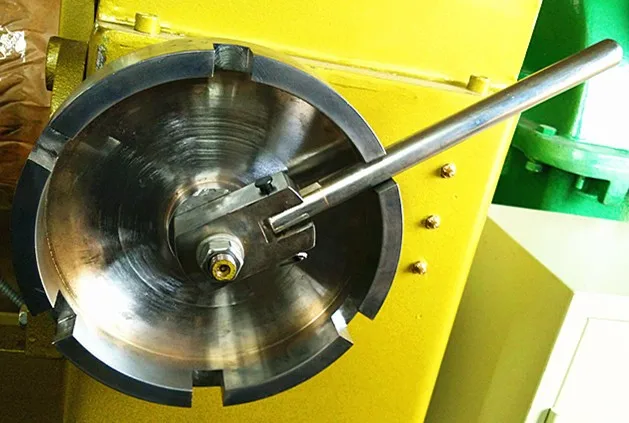

                                            PICTURE 2

Main Features

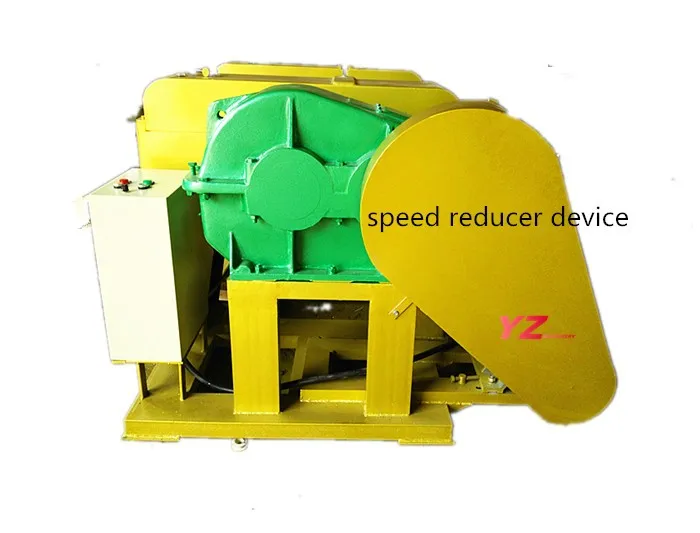

Name: Speed reducer device

The coupling connects gear speed reducer to three roll mill. The rollers are  rotated  by coupling parts.

Machine Parts

Name: cooling system

control the temperature of three rolls to ensure no effect on product quality from temperature change.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2510 (L) * 1560 (W) *1120 (D)
Weight
300KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.We will pack it according to customers special request.
