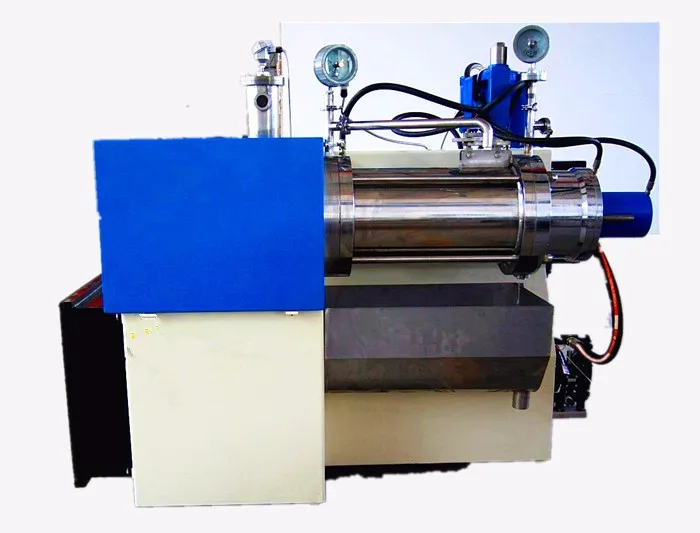

Horizontal Bead Mill for Mass Paint, Ink, Pigment

FOB Reference Price:Get Latest Price
$15,000.00 - $25,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
NWS
Condition:
New
Type:
Sand Mill
Product Type:
Paint
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
YINGZHI
Voltage:
Customized
Dimension(L*W*H):
1800*1800*1000mm
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
20/30/50kw
Weight:
1500kg-2400kg
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed in a standard exported wooden case.
Port
SHANGHAI
Lead Time :
Shipped in 20 days after payment
Product Description

Product Application

This pin type bead mill is suitable for automobile paint, steelroll paint, ink, automotive paint, anti-corrosion coatings, water-color paste, wood lacquer etc.

SPECIFICATIONS FOR NWS BEAD MILL
Model
NWS-20
NWS-30
NWS-50
Volume
20 L
30L
50L
Motor power
18-22kw
22-30kw
30-45kw
Diameter of abrasive medium
0.8-2.0mm
1.2-2.0mm
1.4-2.0mm
Output
80-200kg/h
110-300kg/h
150-400kg/h
Cooling water
1.6m³/h
1.8m³/h
2.0m³/h
Overall size
1420*1450*810mm
1710*1700*960mm
1800*1800*1000mm
Weight
1500kg
2300kg
2400kg

Main Features

1. strong versatility, easy operation, PLC is used for control, analogous drawing and touch screen are available(optional)

2. The adjustable dynamic separator is made of highly wear-resistant hard alloy with the feature of self-cleaning and interveral-adjusting. The interverl can be adjusted to 0.2mm and the abrasive medium less than 0.6mm is chosen for the end users to increase the fineness.

3. Volume variable pistontype milling chamber changes energy density and barrel pressure to attain best dispersion and milling results.

4.Mechanical sealing and sealing lips are all imported from Germany, which help to crack the hard rut that material tends to leak from the milling chamber in high-viscosity milling operation.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
It depends on the size of machine
Weight
It depends on the size of machine

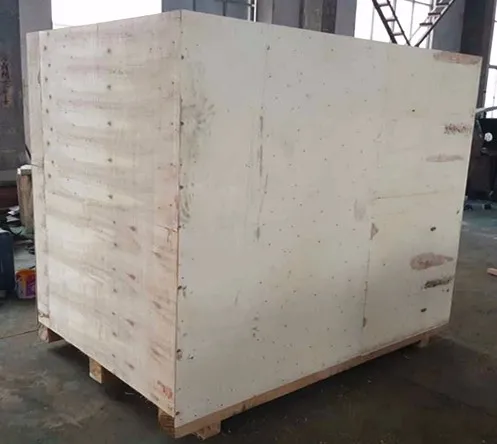

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.We will pack it according to customers special request..
