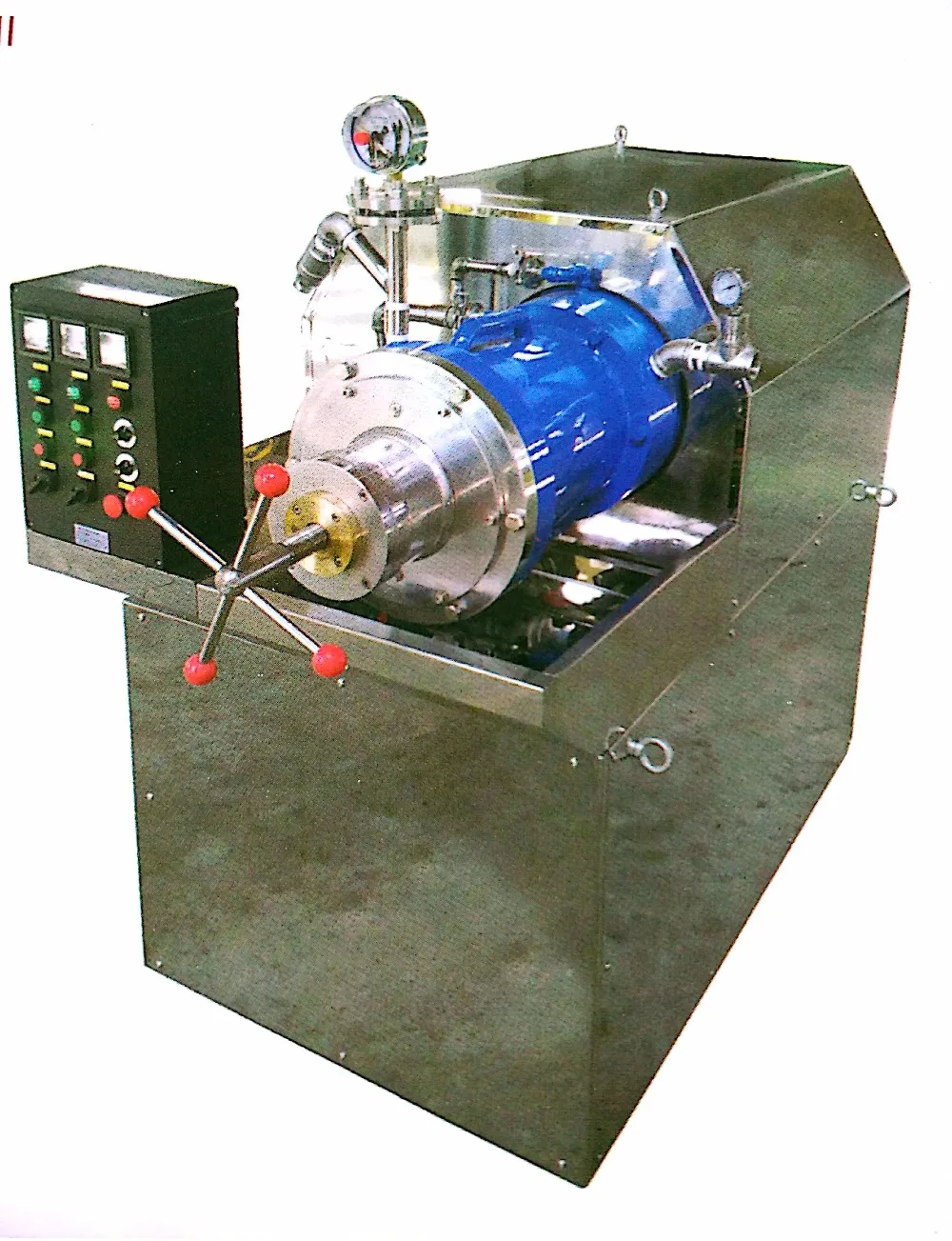

High viscosity horizontal bead mill

FOB Reference Price:Get Latest Price
$17,000.00 - $25,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
WSZ
Condition:
New
Type:
Sand Mill
Product Type:
Paint
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
YINGZHI
Voltage:
380V
Dimension(L*W*H):
1600*1100*1760mm
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
30-75kw
Weight:
1500kg
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
A standard exported wooden case
Port
SHANGHAI
Lead Time :
Shipped in 30 days after payment
Product Description

Product Application

This machine is designed specially for predispersion and fine dispersion of high viscosity material(offset oil ink). It can be used singly and also together with three roll mill through connection as well as full automatic production line. It is an ideal equipment for producing offset oil ink and high viscosity material.

SPECIFICATIONS FOR WSZ HIGH VISCOSITY HORIZONTAL BEAD MILL
MODEL
WSZ-8
WSZ-14
WSZ-25
CAPASITY(L)
8
14
25
ADJUSTABLE SANDBOX VOLUME(L)
5
5
8
GRINDING MEDIA
2.0-2.2mm zirconia ball/2.0mm steel ball
MAIN MOTOR POWER(KW)
30-37
37-45
55-75
POWER OF THE MATERIAL PUMP TIMING MOTOR(KW)
1.5
2.2
3.7
COOLING MOTOR POWER(KW)
0.37
0.37
0.37
OUTPUT(KG/H)
50-110
80-150
100-180
OUTLET HEIGHT(mm)
1200
1250
1350
WEIGHT(kg)
1500
2000
2800
OVERALL SIZE(mm)
1600*1100*1760
1700*1100*1840
1830*1150*1730

Main Features

1) PLC is used for control, analogous drawing and touch screen are avaiable(optional)

2) Tapered milling chamber and trapezoid rotor are specially designed to mill high-viscosity materials. The advanced internal-cooling device is effcient enough to dispel the heat generated during high-viscosity milling in the milling chamber.

3) mechanical sealing and sealing lips are all imported from Germany, which helps to crack the hard nut that material tends to leak from the milling chamber in high-viscosity milling operation.

4)A magnetic filter with magnetic flux of 8000gauss, which eliminates foreign-metal impurities contained in the paste to be milled, ensure product purity as well as equipment safety of the next process.

5)Volume variable piston type milling chambet changes energy density and barrel pressure to attain best dispersion and milling results.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
It depends
Weight
It depends



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.We will pack it according to customers special request.
