hydraulic lift paint disperser/ variable speed dispersing machine/paint mixer machine

FOB Reference Price:Get Latest Price
$1,500.00 - $6,000.00 / Sets | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Model Number:
FL series
Max. Loading Capacity:
2000L
Condition:
New
Mixer Type:
Agitator
Product Type:
Paint
Application:
Viscous Fluid
Additional Capabilities:
Milling
Place of Origin:
Jiangsu, China
Brand Name:
YZ
Voltage:
220V/380V
Dimension(L*W*H):
it depends
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One Year
Power(W):
1.5KW~45KW
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
a standard wooden case
Port
shanghai
Lead Time :
Shipped in 15 days after payment
Product Description

Product Application

This series dispersion mixer can be equiped with tooth dispersion plate used in the high-speed dispersing mixing,and also can be used with various types of mixers using for various kinds of mixing occasions.

Dispersion mixer is typically used for chemical industry,such as coating,dyes, pigments and adhesives for liquid and liquid solid material mixing, dissolution, and dispersion.

During mixing and dispersing, the air suction is minimal,so mixing and homogenizing make effect perfectly.With the high speed mixing, dispersion can make the material quickly dissolve and smaller particles.

Model
FL150
FL150
FL250
FL250
FL350
FL350
Motor Power
1.5/2.2KW
3/4KW
5.5/7.5kw
11/15kw
15kw
18.5/22kw
Rotation Speed of Shaft
0-1400rpm
0-1400rpm
0-1400rpm
0-1400rpm
0-1400rpm
0-1400rpm
Diameter of Dipersion Disc
φ150mm
φ200mm
φ250mm
φ250mm-300mm
φ250mm-300mm
φ350mm-400mm
Lifting Height
700mm
700mm
900mm
900mm
1100mm
1100mm
Pump Power
0.55kw
0.55kw
0.75kw
0.75kw
1.1kw
1.1kw
Capacity of vessel
50L
200L
400L
500L
800L
1200L
Weight
400KG
500kg
700kg
800kg
1200kg
1500kg
Modulation Form
                                                     FREQUENCY CONVERSION SPEED CHANGE
Working Conditons
                                                                EXPLOSION-PROOF/ORDINARY

Mixing tank holding device is optional.

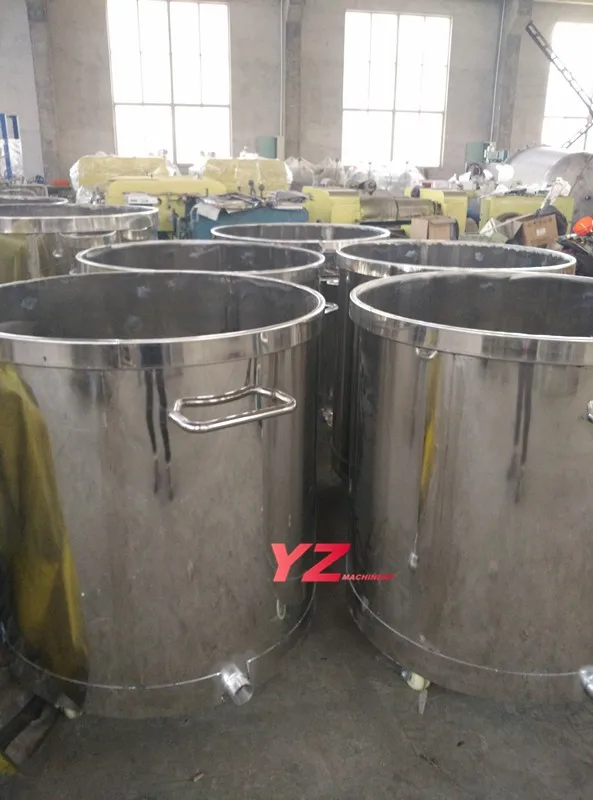

 Moveable stainless steel mixing tanks in different sizes are optional and customized.


Main Features

1) Frequency /electromagnetism convert control

2) The speed can adjust easily

3)Axial mixing form is more stable

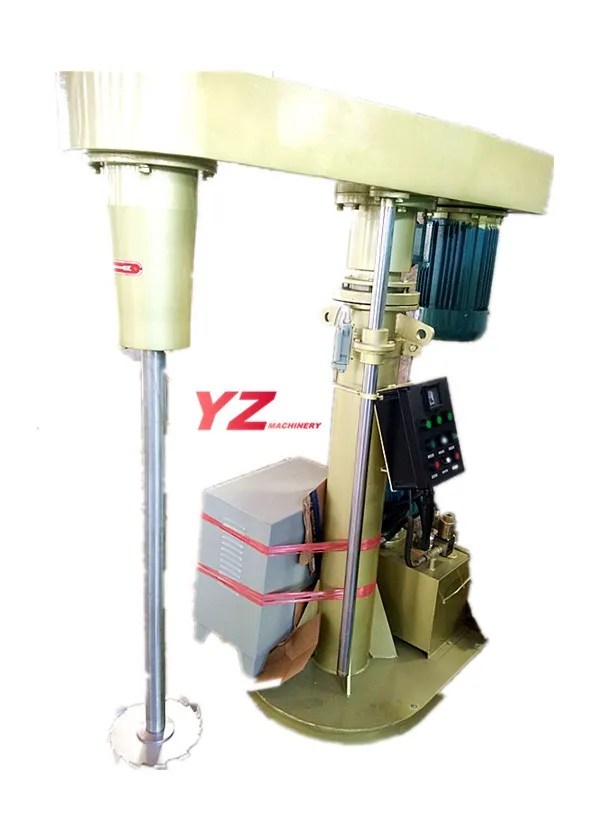

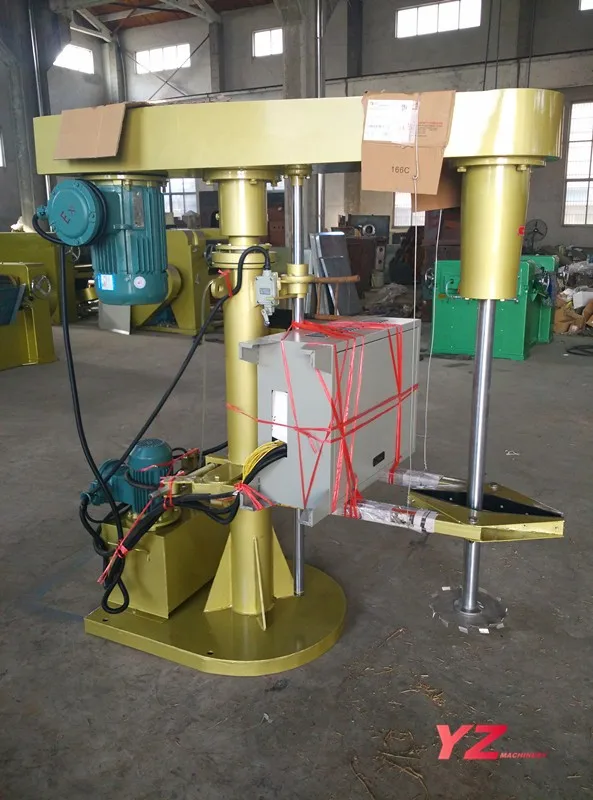

Detailed Images

Machine Parts

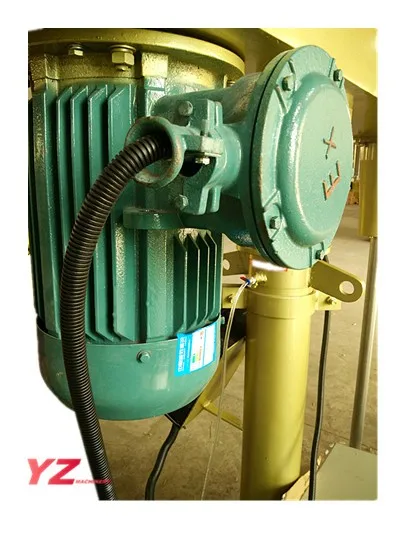

Name: explosion proof motor is optional.

Main Features

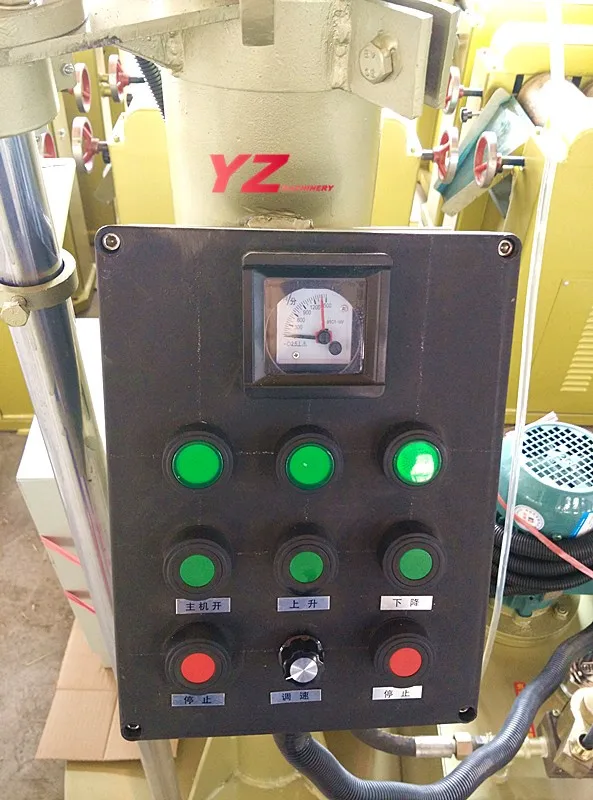

Name: Very simple operation panel.

Machine Parts

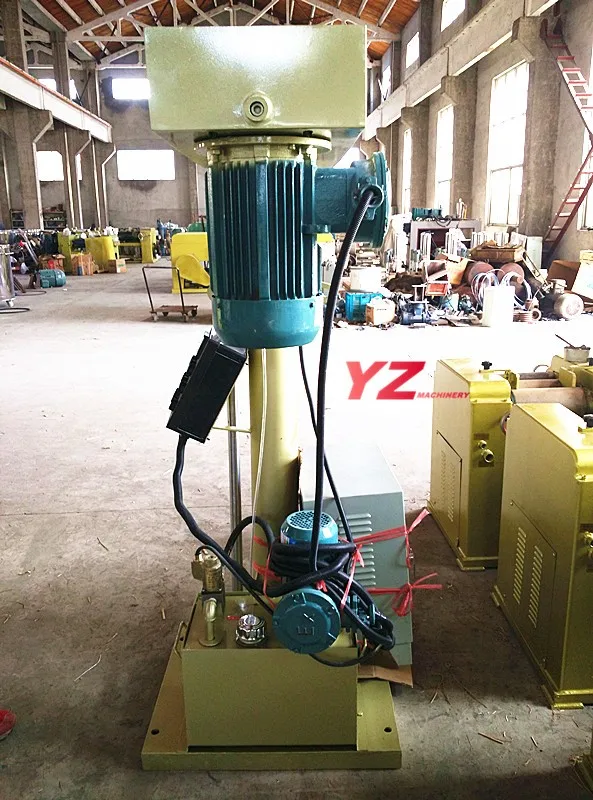

Name: Hydraulic station

Main Features

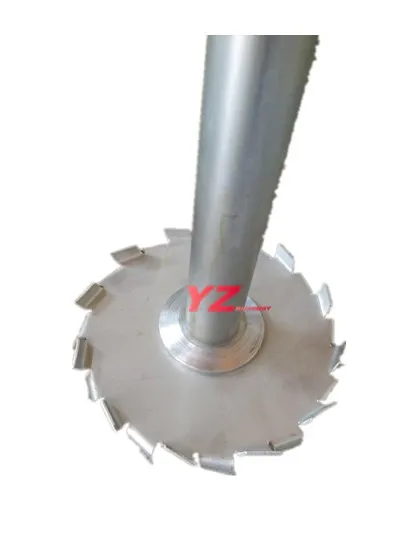

Name: impellers in different forms are optional, such as jagged edges,trigeminal oar and butterfly.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
it depends on the machine type
Weight
/



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.We will pack it according to customers special request.
