Video technical support, Online support, Engineers available to service machinery overseas
Place of Origin:
Medicine Processing, Chemicals Processing, Food Processing, PAINT AND INK PROCESSING
50 Set/Sets per Month
Packaging & Delivery
A STANDARD WOODEN CASE
1 - 5
To be negotiated

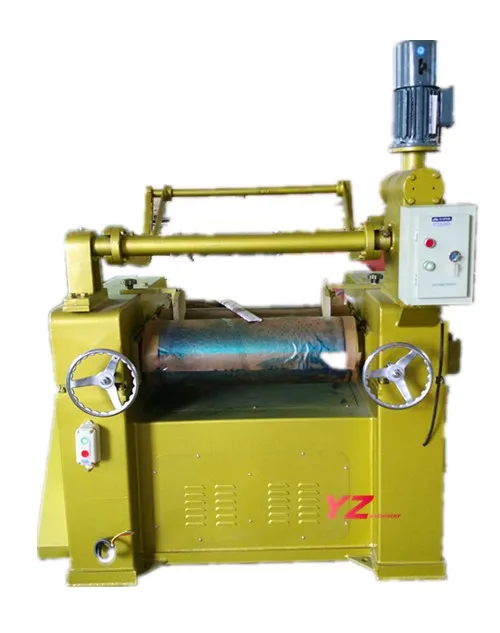

Three-roll grinding miller is mainly applied for grinding paste material of paints, ink, pigment, plastic, food etc. It is neither suitable for grinding the material containing acid, alkali composition nor the one would corrode rolls. This machine is suitable for high viscosity material, such as printing inks, offset inks, lithographic inks.
It is equipped with three rollers which are in horizontal level. With the roll extruding and milling in different speed, the material is ground normally for two times, and hard or high viscosity material for more times, then obtain high quality finished products of 3-18um(testing with fineness scraper).
SPECIFICATIONS FOR S260 THREE ROLL MILL
Diameter of Roller
Working Length of Roll
Rotation Speed of Rolls
The three roll mill can be equipped with charging machine if customer needs.
1) Simple structure in linear type ,easy in instllation and maintation.
2) One of the grinding machine which can reach finest grinding result;
3) Temperature display of the inlet and outlet water for option to ensure no effect on product quality from temperature change.
4) Adopt gear to adjust rollers to get more stability and endurance

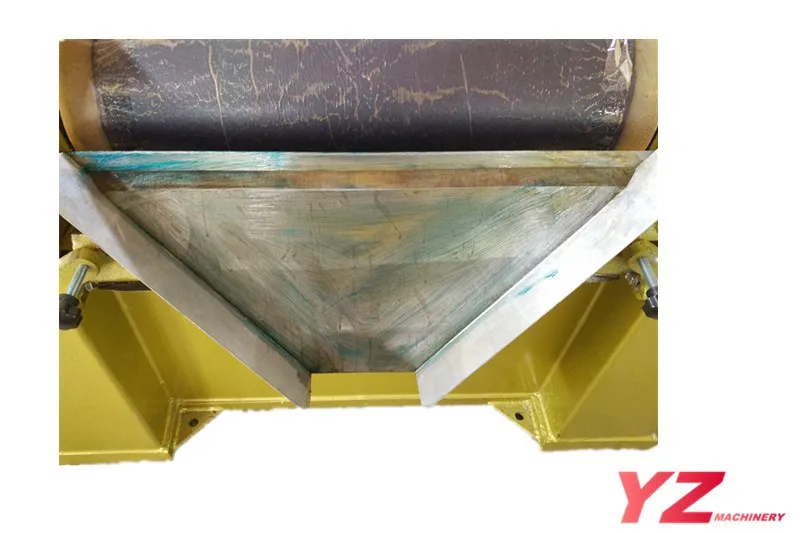

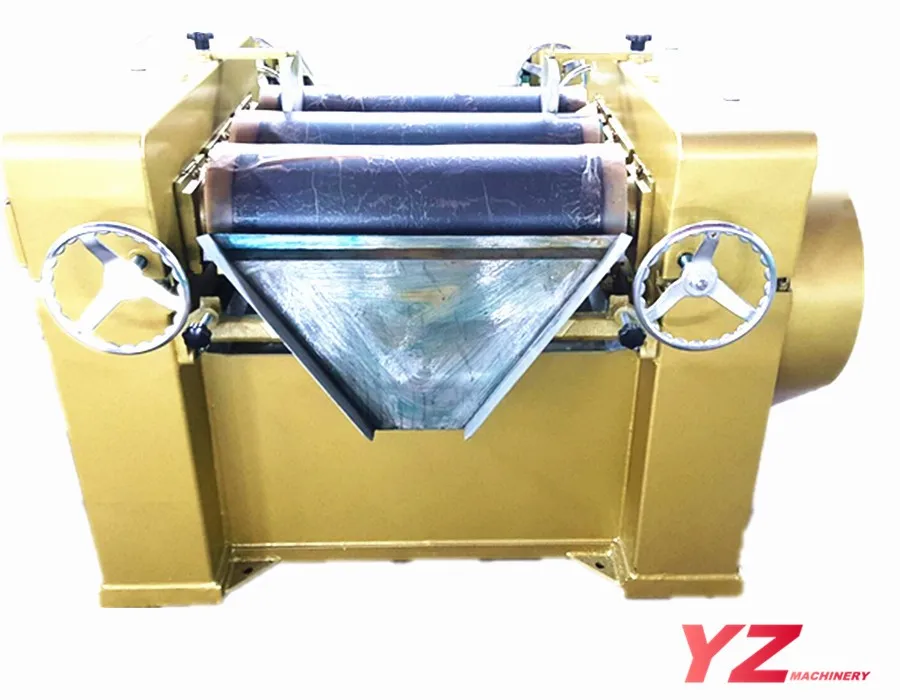

Name: The discharging apron
The discharging apron is mounted on the discharging apron rack of miller body. The blade knife is fixed on the discharging apron, and close to the surface of roll . The blade edge should be 5mm higher than the horizontal center line of roll in order to scrape the material adhered to the surface of roll.

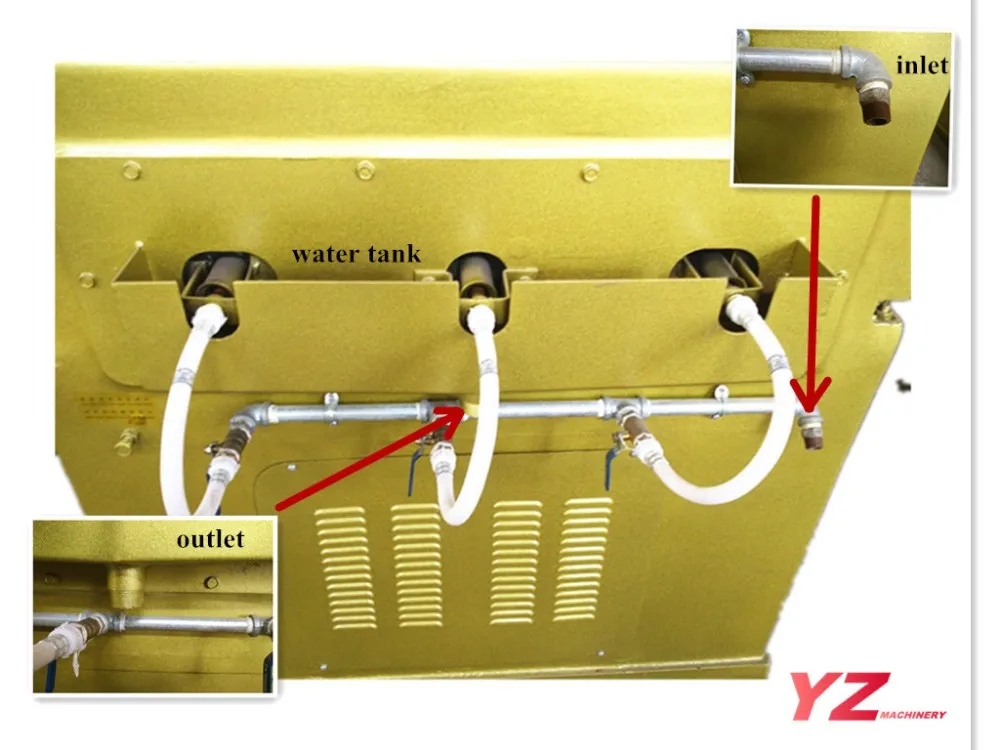

Name: inlet and outlet of the cooling water
It's for cooling system with a hosepipe connected to the inlet and outlet on the machine.

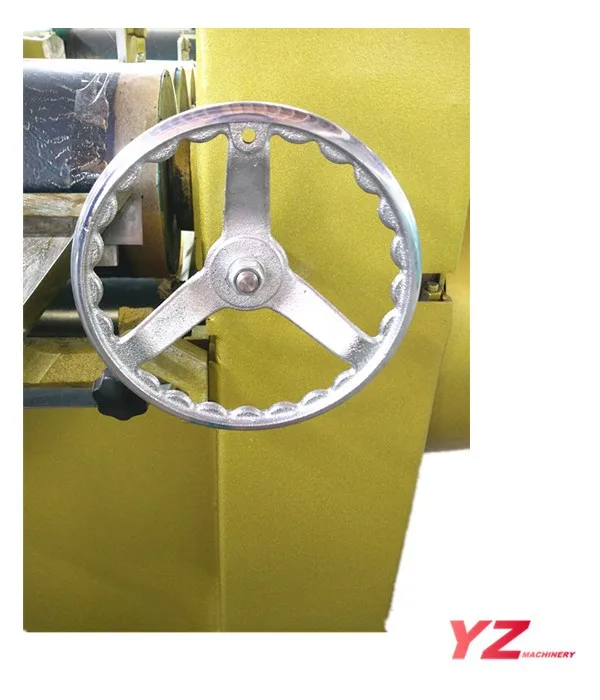

Name: Hand Wheel Turning the hand-wheel makes the apron roll and feed roll move backward and forward along guide-way under the action of screw stem and spring so as to adjust the fineness of paste material to be ground.
NAME: Lubricating oil filler opening
This is for filling the lubricating oil to the gears inside.The gearing surface between transmission gears on left side of roll should be lubricated every three or five days to avoid damaging the gear tooth.

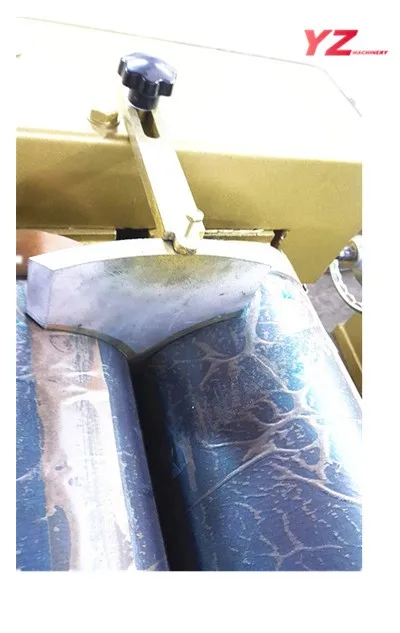

Name: Copper End Plate and End Plate Rack
The feeding device, composed of copper end plate and end plate rack, is mounted on the both sides between feed roll and center roll. The copper end plate close to the surfaces of feed roll and center roll guarantees no material flowing out.The end plate rack is bolted on the miller body in order to adjust the distance and dismount to clean. The copper end plate should be often adjusted so as closely to contact the surface of roll.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
1680(L) * 1130 (W) * 995 (D)

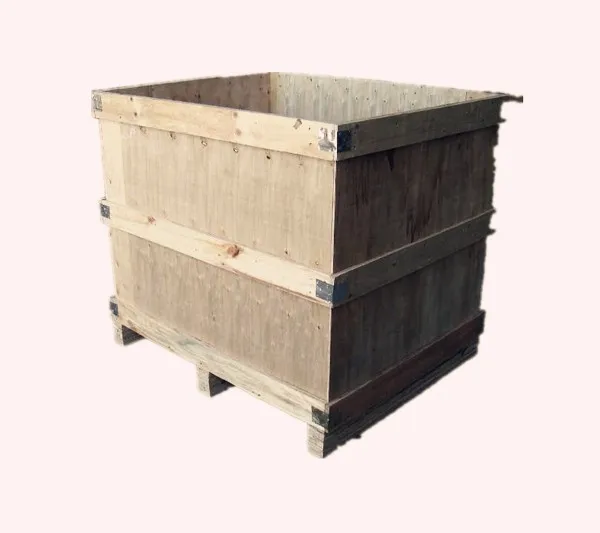

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.We will pack it according to customers special request.
